Privacy Workshop for the Digital Construction Industry

Oct 04, 2022


📢 A FREE privacy workshop for construction professionals will soon take place! 👨‍💻



Are you interested in learning the best digital practices for your work in the architecture, engineering and construction sector? Then make sure to tune in to this FREE workshop, which will target topics such as: privacy, AI, EPBD, and other critical issues of the digitalisation of the construction industry! 📲



📆 When: 10:00 - 13:00 CET

💬 When: 21st of October 2022

📍 Where: https://www.eventbrite.com/e/privacy-ensuring-best-practices-for-the-digital-construction-industry-tickets-407936708677




Multi-criteria decision-making method and tool for housing renovation projects

Aug 09, 2022

To facilitate the process of decision-making in renovation projects, this deliverable provides a methodology that guides the selection of suitable renovation solutions in the context of residential buildings. It can assist stakeholders to define general objectives, establish a set of criteria to evaluate multiple alternatives, and capture the preferences of the stakeholders involved in the decision. This methodology also relies on the Pairwise comparison and TOPSIS methods, which can capture the preferences of stakeholders and in turn, rank the alternatives. Lastly, the methodology is an intuitive and accessible tool based on an excel file, making it easy to understand and work with.

This methodology consists of a comprehensive criteria tree covering social, economic, and environmental aspects relevant for renovation projects. This therefore enables the BIM-SPEED decision-making methodology to provide stakeholders from the building renovation industry with a framework to:

  • Engage different stakeholders and conduct the decision-making process following a structured procedure
  • Capture the preferences of different stakeholders' groups considering their roles in the decision-making process
  • Identify which renovation alternatives are more suitable according to the objectives and preferences of the different stakeholders in a transparent manner
  • Gather and present the results from sources such as energy simulations, cost analysis, and comfort studies performed during the assessment of design alternatives

This structured framework to perform the decision-making process can facilitate the engagement of different stakeholders, which will be able to clearly identify their different stages of the process in addition to how their preferences and contributions are considered in the process. Through the methodology being implemented in an excel spreadsheet, it facilitates the usability and accessibility to the tool for the stakeholders. Moreover, the general criteria tree proposed can support the stakeholders to identify relevant criteria and select the set that is relevant for their specific case. As the proposed tree covers social, economic, and environmental aspects, it encourages stakeholders to seek a more comprehensive analysis.

This deliverable has several potential impacts on BIM renovation. For instance, according to Jerson Pinzon (TUB), one of the authors of this deliverable: “The predefined general criteria tree can support stakeholders to identify typical objectives, which is one of the most demanding tasks at the beginning of the process. Furthermore, stakeholders will be able to analyze a large set of alternatives, followed by narrowing down the final options to the most suitable alternatives. These choices can then be analyzed in more depth to discover additional potential adjustments and combinations to define the final renovation solution that will be implemented." Another significant impact involves sustainability goals. As the proposed general tree covers social, economic, and environmental elements, it can encourage stakeholders to apply a sustainable approach covering different aspects. It also promotes the participation of different stakeholders to consider their perspectives and preferences.



Strategies for user acceptance, collaboration support, and BIM data maintenance

Jul 26, 2022

The BIM-Speed platform provides an open eco-system that projects can use to store and share all project information in the form of documents. At the same time, the open eco-system of the BIM-SPEED platform enables software developers the possibility to develop and provision new services that can interact with any sort of information provided on the platform. This deliverable will highlight how the BIM-SPEED platform is upon existing KROQI platform designed and operated by the CSTB to provide an eco-system platform specifically dedicated for renovation projects in Europe.

As a starting point for developing the BIM-Speed platform, the existing KROQI platform provided by the CSTB will be utilized. The KROQI platform is built around a cloud collaboration suite which encompass an Electronic Document Management System (EDMS) and file exchange features. Some process-supporting services are built to enable integration of internal and external construction-related services to the collaboration suite. For instance, KROQI brings a Single Sign On (SSO) service and a store service to register AEC-services that will be triggerable from the collaboration suite interfaces. On the top of collaboration features, enabler core services are proposed to better match requirements of construction projects. For instance, the naming convention service brings file naming verification features, useful in AEC projects, which doesn't exist in the default EDMS. As the BIM-SPEED project is targeted towards renovation projects, an overview of some supported services will be provided:

1. The KROQI services store has been updated and extended to manage BIM-SPEED renovation services-package options and pricing plans. This makes it possible to assign BIM-SPEED service plans to a regular KROQI account. By applying a BIM-SPEED service plan to a regular KROQI account, the KROQI account can: i) have access to BIM-SPEED renovation service packs, ii) be rebranded from a KROQI interface to a BIM-SPEED interface in the EDMS, iii) get a specific financing plan (which is currently an all-inclusive free plan in the context of the BIM-SPEED).

2. Some BIM-SPEED enabler services are created as base or examples for renovation services to be integrated in the BIM-SPEED platform. The Weather Service makes it possible to retrieve weather data required for renovation simulations using an IFC model as an input. The GIS service uses the location contained in an IFC file to help retrieving, from public GIS servers, surrounding data required to perform simulations and validate instructed renovation options.

3. Other BIM or renovation-related platform and ecosystems have been integrated to the BIM-SPEED platform which demonstrates the openness of the platform. This is the case of the CYPE tools integrated via the CYPE BIM-server syncing files seamlessly with the BIM-SPEED platform.

4. The BIM-Speed platform addresses two main audiences: software developers/software vendors and project managers. Firstly, project managers can use the BIM-Speed platform to manage all information of their renovation project: such as (1) setting up user accounts for all project participants, (2) establishing a dedicated folder structure, and (3) storing all information in the form of documents/files.

Secondly, software developers and software vendors can develop dedicated web-services based on any information stored in the BIM-SPEED platform. This allows for a seamless integration of third-party applications with files stored in the platform. Additionally:

  • BIM-SPEED platform enables end-users to integrate third-party services due to its marketplace philosophy
  • BIM-SPEED platform can boost partners' products functional value by associating them to other BIM-SPEED partners tools via its predefined workflow built-in features.


News Archive

EU BIM for Building Renovation Competition: Information SessionMar 10, 2022

Read More

EU BIM for Building Renovation Competition: Information Session

Mar 10, 2022

Join our online information session where we will explain the rules of our BIM competition and introduce the different tools that can be used. Interested participants will have the opportunity to learn more about how to participate, what they can win, and learn more on how to use the different tools. REGISTER HERE.

AGENDA:

12:00-12:10: Introduction to BIM-SPEED project by Agnieszka Łukaszewska, Fasada

12:10-12:15: What is the BIM-SPEED Competition by Jasper Vermaut, REHVA

12:15-12:15: Demonstration of the BIM-SPEED platform by Nicholas Pastorelly, CSTB

12:25-13:05: BIM-SPEED Tool pitches (5min per pitch)

  • File name convention by Nicolas Pastorelly, CSTB
  • Mereen services by Maryam Daneshfar, TU Berlin
  • GIS data provider by Maryam Daneshfar, TU Berlin
  • 3DASHtool by Javier Román, CARTIF
  • BACN2BIM by Roberto Sanz, CARTIF
  • BIMSpeed library by Marco Pepe, STRESS
  • BIMServe.center by Pablo Gilabert, CYPE
  • RE Suite by Jos Noordzij, DEMO

13:05-13:20: Interactive Q&A session (can be extended if needed)


A SET OF SUPPORT TOOLS AND STANDARDISED PROCEDURES FOR BEM CREATION Feb 08, 2022

Read More

A SET OF SUPPORT TOOLS AND STANDARDISED PROCEDURES FOR BEM CREATION

Feb 08, 2022

The development of digital tools can facilitate the analysis and energy diagnosis of new buildings and refurbishment works automatically. The aim of this deliverable was to develop tools which would overcome any detected bottlenecks, and examples of these bottlenecks will be elaborated upon. Firstly, a large part of BIM model information is lost when generating BEM models. Secondly, it is necessary to spend a significant amount of time to manually model the energy model to successfully perform relevant calculations and/or analysis, regardless of the quality of the original BIM model. Therefore, these tools can achieve two things: automatically convert BIM models into BEM models, and generate simplified BEM models with the absence of any previous BIM models. This deliverable also includes a step-by-step user guide on how to generate a BEM model from any BIM model by using the Open BIM Construction Systems and Open BIM Analytical Model tools.

The following four tools were developed:

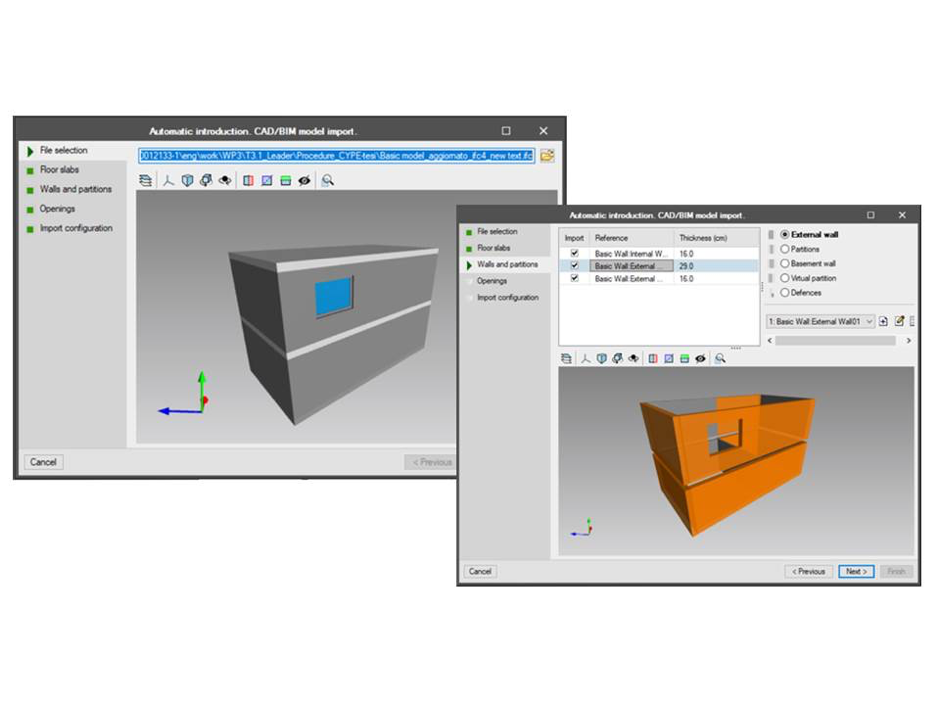

1. Open BIM Construction Systems: This application (through its thermal characterization) makes it possible to create dynamic cartographies capable of storing the building systems which were created, as well as their data in user libraries. This makes it so that these elements are automatically assigned in subsequent works, regardless of the analysis tool chosen.

2. Open BIM Analytical Model: This application performs geometric computation, which allows the creation of BEM models with high precision of geometric definition for energy calculations and analysis which are compatible with open formats such as IFC (2x3 and 4). This procedure can be automatic or customized, enabling the user to transform elements from the IFC into elements of the BEM model.

3. BIMtoBEPS tool based on TRNSYS: This tool aims to cover the full BIM to BEM process, namely, generating BEM through dedicated algorithms handling the information contained in the IFC. The main purposes are to: facilitate energy demand calculations of buildings directly from the IFC, scan user interaction, using building element layers, attributes and geometry, and spatial zones information.

4. Simple BEM Generator: This tool creates a computable BEM without the input of an existing BIM. It can be particularly useful to conduct initial quick simulations and optimize procedures to create an overview for such projects. As creating a detailed BIM is often a lengthy process, these initial results can help decide whether a specific project is worth the effort or whether another project may have a greater potential for improvement.

According to the lead author of this deliverable: "Until now there were no tools capable of reading BIM models which generated a high-precision geometric calculation model – and through thermal bridges, this is precisely what the Open BIM Analytical Model does. In addition, some of the software developed does not simply import data from BIM models, but creates a real-time link to them in the cloud. In other words, with any changes in the original BIM model, the generated BEM model will detect it and offer automatic update functionalities. Therefore, it is possible to integrate these applications even if the BIM model is not finished, so that the result of the thermal analysis carried out can be used for decision making even in early stages of the project."

The tools developed in this deliverable cover both the area of pure search (without commercial purposes, such as BIMtoBEPS), as well as tools aimed at their distribution and free use by professions in real use (such as the Open BIM Analytical Model). This means that not only has there been the possibility to openly explore possible solutions to the bottlenecks detected, but also a business approach has been given where some of these tools are already being distributed for free on the BIMserver.center platform. Given that there are also already hundreds of users giving positive feedback from using them in their architectural projects, it is to be expected that their usefulness will go beyond the duration of the project.

This deliverable demonstrates opportunities which exist in the development sector and which are applied to the architecture sector. There is currently a situation regarding the oligopoly of big software brands, to which the current tools often are unable to cover all the needs of users. The range of tools developed for this deliverable is a sample of the problem-solving potential of alternative development teams, being able to present innovative and competitive solutions that improve the current architectural reality. In this case, the problem of access to fast and automatic energy analysis for users who are not energy experts from different points of view has been solved.

GUIDELINES FOR AS-BUILD BIM MODELLING OF EXISTING BUILDINGSNov 16, 2021

Read More

GUIDELINES FOR AS-BUILD BIM MODELLING OF EXISTING BUILDINGS

Nov 16, 2021

​There is a vast amount of information available surrounding Building Information Modelling (BIM), however, there is a lack of data on the use of BIM in renovation projects. Renovation projects and the creation of a BIM model must be approached differently than "new building" projects as the base of information used is not the same. Deliverable 2.4 from BIM-SPEED provides a guideline which is specifically aimed towards the part of the AEC industry that is responsible for creating a BIM model. In other words, it is directed to BIM modellers, BIM coordinators and BIM managers – regardless of the level of experience in BIM.

This deliverable presents the best tested practices and specific recommendations in creating a BIM model in relation to the BIM-SPEED use cases. The principles can be transposed to any BIM modelling software with features that are similarly integrated. For instance, REVIT and ARCHICAD were the two main 3D modelling software selected to highlight the practical steps to take when modelling.

The information presented in this deliverable offers a broader view of the BIM model in relationship to items that may occur when working on different projects, such as:

  • Risks of switching from older to newer versions of the software;
  • Understanding the importance and requirements of a project template;
  • Setting the coordinates of the project;
  • Creating levels and adopting the correct level of development of the model;
  • How to manage the model and when to split a BIM model;
  • Making a proper export of IFC and other formats

According to lead author Bogdan Andrei Tofan (ARCADIS) of this deliverable: "The current guideline is an ontology of information regarding the creation of a BIM modelling, offering a comprehensive view of all BIM roles involved in a project, regardless of their experience. This document integrates the knowledge and experience of all its authors in a single manual. Examples are given for the two most commonly used programmes on the market, but at the same time, the deliverable presents the information in a way that can be easily transposed to other software. This document provides a foundation for every individual involved in creating a BIM model of an existing building."

Nevertheless, there remains uncertainty and ambiguity of available information from a BIM perspective. This is because a lot of initial data is required, but information also has to be available on the final results of a building after its renovation. Some specific items tackled in this deliverable include: evaluating how information is structured, creating special parameters to show data in the BIM model, different ways of modelling by introducing "modelling phases" and finally, having a different levels of development in the same model.

As renovation projects require significant amounts of data collection (along with how BIM models are built based on that information), an important part of this guide is focused on how to build such a model when considering point clouds, 2D drawings, images and PDF files as main sources of information.

BIM-SPEED Acoustic Monitoring on Warmond Demostration CaseOct 21, 2021

Read More

BIM-SPEED Acoustic Monitoring on Warmond Demostration Case

Oct 21, 2021

​Acoustic monitoring can allow for different sounds in an environment to be measured and can aid in different stages of building renovation projects. One of the main objectives of BIM-SPEED is to develop a tool for building indoor acoustic performance assessment. To achieve this, a tool was developed to be based on common standards which aims to support the decision-making process for renovation strategies. In order to successfully develop a tool, a measurement survey was performed at a Warmond demonstration site (see Figure 1). This survey allowed all relevant data to be collected for an acoustic performance assessment before renovation, as well as for the calibration of BIM-based acoustic comfort models.

To determine the model calibration, the following three tests were performed:

1.     Measurement of indoor and outdoor sound pressure levels (SPL)

2.     Measurement of sound reduction Index (RW)

3.     Localization of sound insulation leakages

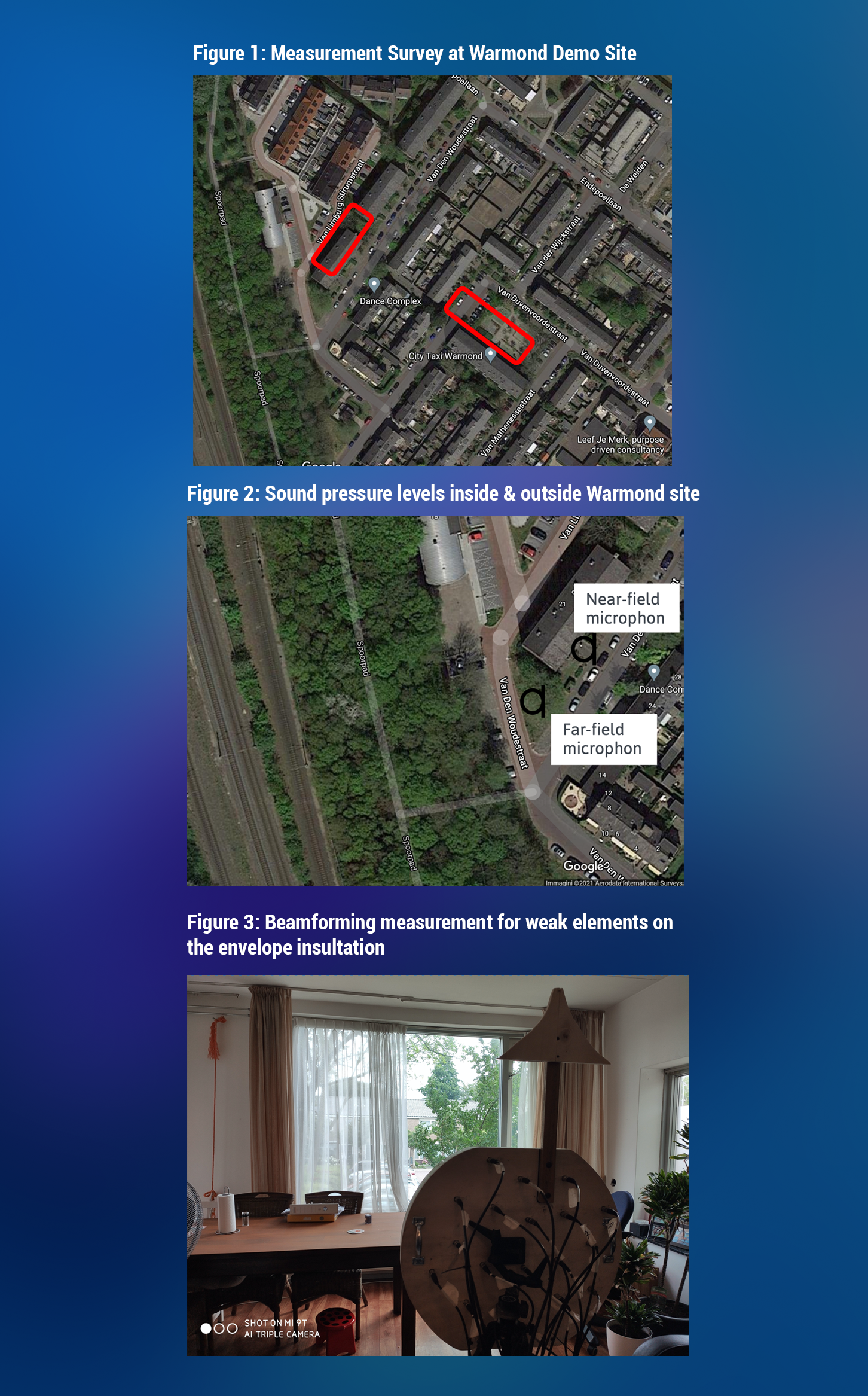

For the SPL test, the sound pressure level was measured at varios locations both outside and inside the buildings at the Warmond demonstration site (see Figure 2). This was to determine the exterior noise which would be utilized as input in both the acoustic model and the actual comfort level respectively. For instance, for one of the buildings, the outside sound pressure levels were measured by Near-field and Far-field microphones. The position of the two microphones is sketched in Figure 2. The SPLs measured by the microphone would thus be used for the model calibration.

The second test involved Measurement of sound reduction Index (RW), where a measurement microphone and a noise source (loudspeaker) were used for the buildings at the Warmond Demonstration site. For one particular building, results showed that the calculated sound reduction index was 37.50 dB, whereas the measured sound reduction index was 37.03 dB.

Finally, for the test of localizing sound insulation leakages, a Beamforming technique was performed. This consisted of a matrix of microphones which measured the spatial distribution of the acoustic pressure, as well as being used to map out the acoustic leakages on the building facades. The beamforming output is a pressure contour map which, once superimposed to the room wall, enabled to locate any weak elements of the building envelope which had to be dealt with in the renovation design. As shown in Figure 3, an example of the beamforming measurement set-up and acoustic map is demonstrated. As indicated on the top right window corner, it was expected that there would be a sound insulation leakage due to the weak elements in the envelope insulation.

All in all, these tests demonstrated the success in collecting data calibration of BIM-based acoustic comfort models, and can indeed support the decision-making process for any future renovation strategies.

Discovering the urban context with MEREEN weather service and GIS data provider serviceAug 30, 2021

Read More

Discovering the urban context with MEREEN weather service and GIS data provider service

Aug 30, 2021

​The urban context, including the urban geometry, land use, green and blue spaces in the neighborhood, pollution, acoustic characteristics, and environmental conditions such as weather and microclimate conditions, can affect different phases of renovation projects. Studies strongly suggest creating a more comprehensive view of all these factors. They believe that these factors influence the planning, construction, and implementation of renovation projects. Understanding the surrounding context provides a more realistic view of the as-built situation of the building. This comprehensive view can help decision-makers to identify the best renovation practices to move toward more sustainable buildings and cities. Therefore, D1.4 aims to present IT architecture and standardization for retrieving and storing geospatial and historical weather data. To this aim, two services have been implemented:

  • MEREEN (MEteo Reelle pour la simulation Energetique) weather service
  • BIM-SPEED GIS (Geographic Information System) data provider service.

The MEREEN weather service provides 'actual' long-term weather data across Europe. The service collects data from different sources and performs a data quality analysis on the collected data. The service is directly available on the BIM-SPEED platform. The extracted weather data is in EPW format, which can be used in EnergyPlus software.

The GIS data provider service utilizes a database that includes registry links to the WFS (Web Feature Service) of different layers of geospatial data for various demonstration sites. WFS is an OGC standard to publish vector datasets. The retrieved geospatial data can be downloaded in Shapefile format and viewed in most GIS softwares. Accordingly, projects can utilize these maps for planning and decision-making.

The strategy for integration to BIM is coupling the weather and geospatial data with BIM via the precise geographic location of the building under renovation on the Earth i.e., the GPS location. The location of the building can be extracted from the IFC file and retrieving the surrounding and weather data can be performed via geoprocessing.

According to the lead author of this deliverable, Maryam Daneshfar (TU Berlin): "The ultimate goal of building renovation is sustainability, energy efficiency, and comfort of the inhabitants, with less cost and more quality. Integration of surrounding and environmental data with building information helps to have a more holistic view of the building and its context. This holistic view helps in energy efficiency evaluation and aids for an integrative approach toward sustainable construction which combines economic, environmental, and social goals."

These tools can be used for different use cases, including site planning, building energy modeling, acoustic, air quality, lighting, and thermal comfort analysis. For instance, for site planning, it is essential to have a realistic view and consider the location of the land and the position of the building site. It is required to verify the access road to the construction site, water, electrical and other utilities, and environmental factors such as drainage, groundwater, possibilities of floods, etc. For Building Energy Modeling (BEM), one of the essential datasets is the weather data. Depending on the energy modeling application, different weather datasets can be used for design and performance, calibration, and energy prediction of the building. The MEREEN weather service provides recent 'actual' weather data, which can be utilized for calibration purposes in renovation projects. By presenting these use cases, this deliverable highlights the significance of surrounding data in the renovation projects. Additionally, incorporating the real-life operation complexities into the BIM helps to enhance the analyses.

Performing laser scanning and deviation analysis on Dutch demonstration caseAug 19, 2021

Read More

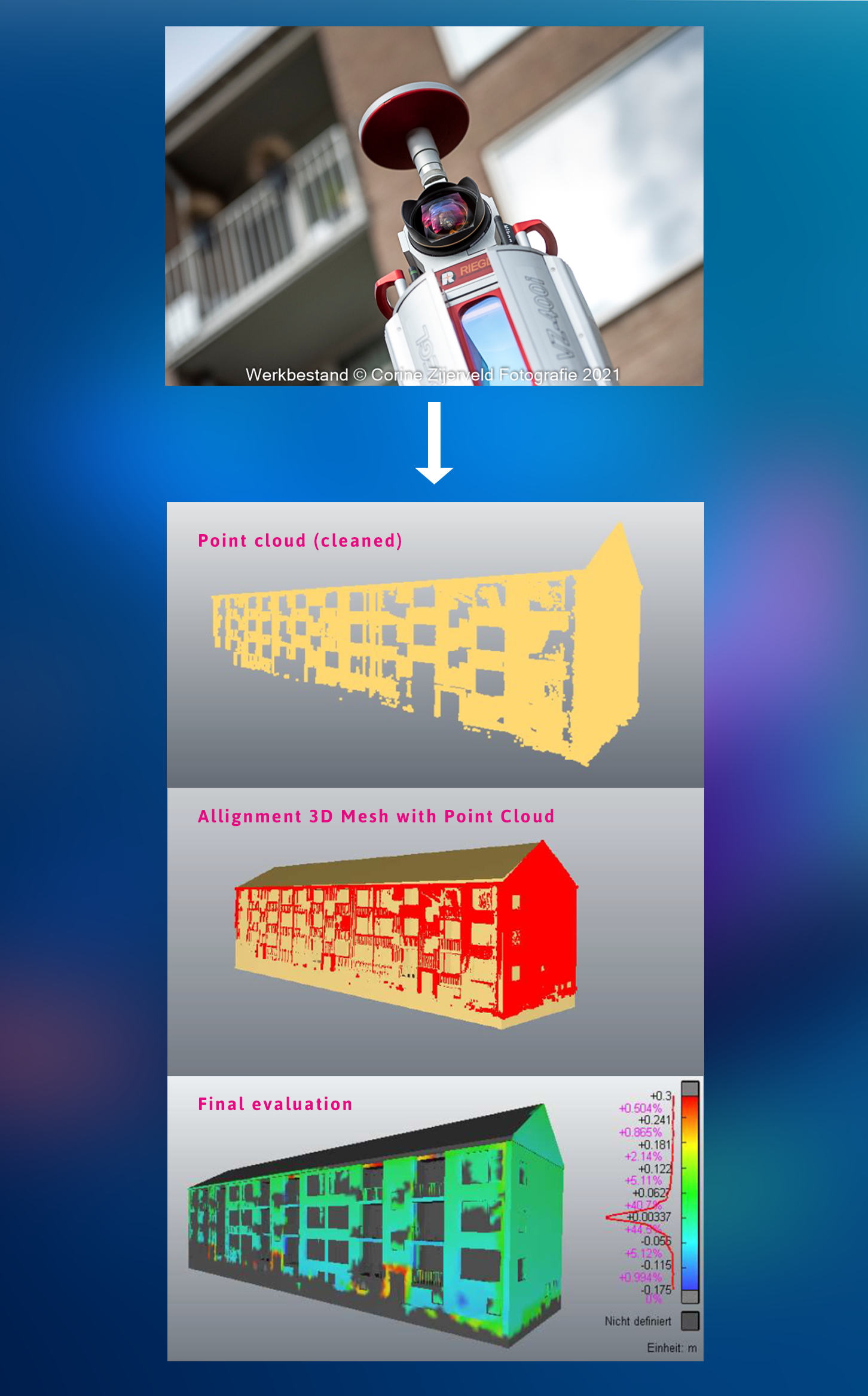

Performing laser scanning and deviation analysis on Dutch demonstration case

Aug 19, 2021

The 3D models of buildings form the basis of various BIM use cases. If the corresponding structures are existing buildings, the models are usually created on the basis of planning documents. Often, these planning documents are outdated, and subsequent renovation or conversion measures are unfortunately only added to the planning documents in the rarest of cases. It is difficult to ensure that the model corresponds to the existing building. Since the correctness of the model is a mandatory condition for many BIM use cases, it is important to ensure that the BIM model and the existing building are in harmony with each other.

In the context of Rule-based model checking and validation of data interoperability, a deviation analysis for the Dutch demonstrator was performed. The goal of the analysis is to detect deviations between the 3D mesh of an architectural model and a point cloud and to adapt the model accordingly.

The procedure of such an analysis is as follows:

  1. First, the Revit model and the corresponding point cloud are imported into the editing software.
  2. If the point cloud was imported together with the model into the program, it is noticeable that the point cloud contains a large amount of point data. However, only a fraction of this point data is relevant to perform the deviation analysis, specifically, the point data related to the existing building is important. In order to obtain the best results, the irrelevant point data must be removed.
  3. To compare the point cloud with the model, it is necessary to extract a 3D mesh of the building shell from the model.
  4. Once the point cloud has been cleaned and the model has been converted into a 3D mesh of the building envelope, both objects can be aligned. For this step, an N Point Registration is used. The N Point Registration is a command of the editor software that allows the user to select a number of point pairs to superimpose (the 3D mesh is the starting point and the point cloud is the target point). Based on the selection of point pairs, the editing software calculates the transformation that minimizes the distance between each starting point and the corresponding target. Then it runs the Best Fit Registration command, which calculates the best possible fit between two objects. This command analyses the overlap of the selected objects to calculate the best of them. The best fit can be understood as the transformation that minimizes the distance to the other object in the least square way.
  5. If the point cloud and 3D mesh were successfully aligned, the results of the deviation analysis can be displayed by the processing software in the form of color schemes or other visualization options. However, the interpretation of the results is up to the user.


Methods for surveying and diagnostics of HVAC systems in the existing buildings Jul 15, 2021

Read More

Methods for surveying and diagnostics of HVAC systems in the existing buildings

Jul 15, 2021

The data collection process for existing residential buildings is often time-wasting, difficult, and not very straightforward. As of now, the most common information sources when developing a project for existing buildings are the existing 2D digital or paper drawings. However, other sources of information are omitted due to different causes (awareness, knowledge, etc.). This deliverable offers guidelines for handling the amount of information that can be extracted from an HVAC system, all while keeping the focus on reducing the time and costs of the project design.

The BIM-SPEED D1.2 methodology developed technologies that can be used to collect, identify, and present data about HVAC systems. Since every technology has its own characteristics, the aim is to present workflows to collect data and determine specific data collection hardware for varying systems. In addition, the methodology focuses on identifying the following:

  • Possible on-site issues when collecting data
  • Financial advantages or disadvantages
  • Data outcome formats
  • Utilization of data outcome formats during the design process of the renovation project.

One key innovation of this deliverable illustrates how probabilistic models can be used in a residential renovation project. A deep learning technique was utilized to create a tool that highlights the benefits of this technology in recreating a 3D model via pictures from the site. The algorithm is in the feasibility study stage; the results have only been tested for radiators and gas-fired boilers. Despite the difficulties in obtaining an accurate database with images, the results were satisfactory. Nonetheless, the challenges must still be surmounted according to the lead author of D1.2: "The tool offers numerous possibilities, but some challenges still need to be overcome. It is important to have a database that will have enough pictures to recognize all the equipment and elements of HVAC systems present in a residential building. Additionally, all this data requires labelling"

Another critical innovation involves two automation scripts developed to assist BIM modelers in reviewing their performed work. These scripts were created with Autodesk Dynamo and functioned exclusively for the Revit software. Through the first script, modelers can evaluate if they have the equipment model in the correct location (for instance, to avoid placing a radiator in a closet) and whether the output energy of the radiator is enough for heat levels for that room (presuming this information fills the model). The second script examines the heating systems to determine if the valves were modeled accordingly.

The methodology shows the importance of having good knowledge from the output of collected data, the site, and tools in optimizing the duration of modeling. In addition, this deliverable provides a better understanding of what technologies or equipment should be used for collecting the desired information. This results in a stronger collaboration between BIM modelers and HVAC engineers as both will have the same knowledge of the collected data. The lead author explains the impact of D1.2: “The unique feature of this guideline is that the techniques are viewed from an HVAC perspective and exemplified in this sense. The impact of this guideline towards BIM is that the entire knowledge is in one source and is easy to understand by the stakeholders actively involved in the project.”

Methods for architectural, structural and thermal 3D data acquisition of existing buildings Jun 02, 2021

Read More

Methods for architectural, structural and thermal 3D data acquisition of existing buildings

Jun 02, 2021

The renovation of existing buildings requires a significant amount of data to be gathered. To create a solid base for defining an optimized refurbishment strategy, knowing the as-is situation of the building is essential. However, as-is documentation of buildings, are often not sufficient to serve as a design base. Therefore, additional data must be collected on the site. Gathering this information can be difficult and time consuming – in turn, bringing about different challenges. Today we highlight the challenges and solutions on the data acquisition and diagnostics for architectural, structural, acoustic, and thermal 3D data.

To address the main challenges of data collection, the deliverable 1.1 of the BIM-SPEED project developed a methodology for data acquisition in the above-mentioned fields. Developing such methods is not without its own challenges, according to the co-lead author of T1.1, Jessica Steinjan (HOCHTIEF): "The main challenge when starting to elaborate guidelines for Data acquisition is to elaborate accurate information about data to be collected. On the other hand, it was totally unclear for which purpose or use case the data should be used. The BIM Speed methodology toolkit provides an adjusted way of identifying the data to go for."

It is common practice for refurbishment projects to collect many gigabytes of data to develop a solid design base of a project. Challenges arise related to managing those large amounts of information. For raw data to become functional later in the process, it must be post-processed. Work Package 1 developed a Use Case methodology kit, which allows the users to specify their main goals of the refurbishment project. This enables users to identify the related business processes, use cases and methods - as well as software, tools and devices which can be used to collect specific data.

The definition of a consistent Project Breakdown Structure (PBS) is also important as a basis for setting up a BIM-based renovation project. This would enable a connection between BIM models and data/information which needs to be added. By following the PBS, all data, documents, or model elements would receive a unique identification code, the Location Identification Code (LIC) or exceeded to a Plant Identification Code (PIC) for MEP. Using a LIC and a PIC provides a very generic way of combining data without the need for exact knowledge about the kind of data to be attached. Integrating the LIC and PIC would be a strong step in bringing everything together.

The methodologies described above demonstrate that data is essential during the renovation process and should be a focus point. The potential impact of these methodologies on the renovation process, include achieving sustainability goals, since the collected data can be brought into relationship with these goals. In addition, defining a common PBS would be beneficial for structuring data, and allow for the attaching of information to 3D projects. This would provide the option to transfer the gathered data into an IT environment, as well as to transfer the enhanced approaches to demonstration sites to be further validated. These methodologies prove useful in providing a general way of structuring data and linking information for BIM. Ultimately, methods to collect data will help optimize post-processing.


The results of the BIM-SPEED survey 2020May 18, 2021

Read More

The results of the BIM-SPEED survey 2020

May 18, 2021

The results of the BIM-SPEED are now live!

In order to analyse the level of BIM usage and practices, BIM-SPEED distributed a survey among stakeholders. All data was collected between November of 2020 and January of 2021. In the results, you can find aspects such as the European adoption of BIM, its implementation in the last 20 years, the main motivations for using BIM, its potentials, and barriers.

Link to the results:

BIM-SPEED survey 2020 results

Application of BIM-to-BEM procedure and Multicriteria decision making tool on Gdynia demonstration siteMay 04, 2021

Read More

Application of BIM-to-BEM procedure and Multicriteria decision making tool on Gdynia demonstration site

May 04, 2021

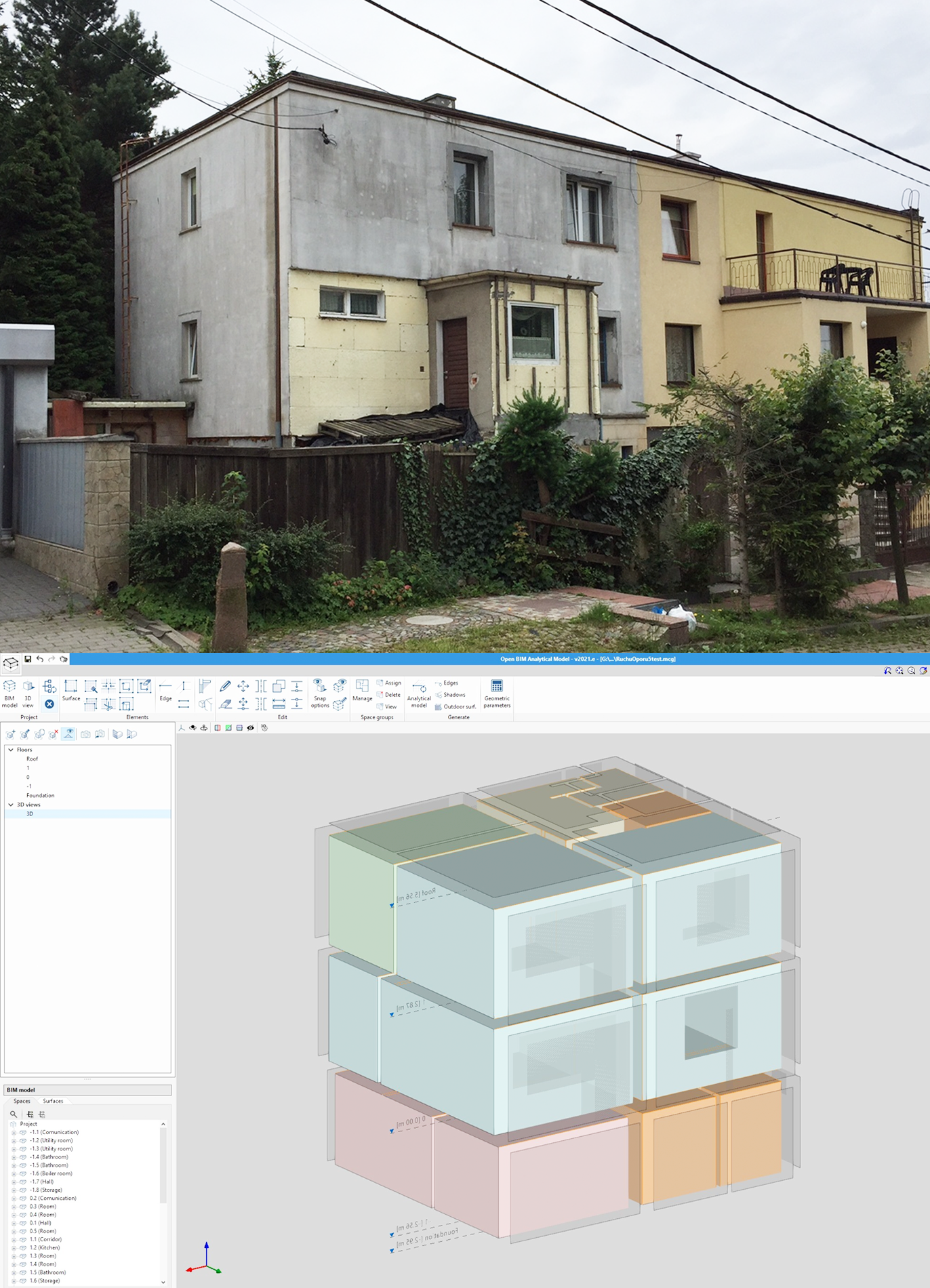

BIM-SPEED tests its solutions in 13 real demonstration cases, which cover Europe's climatic geo-clusters and varying levels of BIM experience in different countries. Today we highlight the demonstration site in Gdynia, Poland, a two-family building. The building was constructed in 1961 and requires renovation. The insulation of the building envelope needs to be upgraded. Additionally, the Heat, Ventilation, and Air Conditioning systems must be replaced. Within the BIM-SPEED project, tools and methods for Renovation design,  Building Energy Model (BEM), and performance simulation phases will be tested.

The first steps at the demonstration site include updating the as-built Building Information Model (BIM) and developing the BEM to perform an energy analysis of the building. The implementation of the BIM-SPEED methodology and tools provides several improvements, significantly reducing BEM development time. For instance, the BIM-to-BEM procedure prepares high-quality input data for BEM creation, because BIM files can be easily imported to Open BIM Analytical Model. With only small adjustments, users can generate an analytical model with defined spaces and adjacency between partitions. Another improvement is the collection of all physical and thermal properties required for BEM definition in one excel spreadsheet, making the following steps faster and more reliable. Additionally, defining partition physical properties is slightly easier and faster in Open BIM Construction Systems in comparison to traditionally used tools. Altogether, the BIM-SPEED procedure makes BEM development faster and less error-prone. On the Gdynia demonstration site, this newly developed BIM-to-BEM approach contributed to a 40%-time reduction in comparison to current practice.

Another tool tested on the Gdynia demonstration building is the Multicriteria decision-making tool. This BIM-SPEED decision-making methodology provides stakeholders from the building renovation industry with a framework:

  • To engage different stakeholders and conduct the decision-making process following a structured procedure
  • To implement a sustainable assessment approach considering environmental, social, and economic aspects
  • To capture the preferences of different stakeholders' groups and consider their roles in the decision-making process
  • To identify which renovation alternatives are more suitable, according to the objectives and preferences of the different stakeholders, in a transparent way
  • To gather and present the results from different analysis such as energy simulations, cost analysis, and comfort studies performed during the assessment of design alternatives

This decision-making tool can support stakeholders to identify typical objectives, which is one of the most demanding tasks at the beginning of the process. Moreover, as the decision-making tool covers social, economic, and environmental elements, it encourages stakeholders to apply a sustainable approach. The methodology proposes a clear structure for the decision-making process, facilitating the engagement of different stakeholders. In turn, the methodology provides clear identification in which stage of the process the stakeholders are involved, as well as how their preferences and contributions are considered during the process. Finally, stakeholders can analyze several alternatives to narrow down to the most suitable options. A detailed analysis can help determine potential adjustments and combinations for the final implemented renovation solutions.

Regarding the Gdynia demonstration site, multiple renovation alternatives are considered, such as the insulation of the external walls and roof, the use of a solar system, and the replacement of items, including windows, lighting, pipes and heating source. The selection criteria to choose the most optimum renovation scenario are: operational primary energy, total energy demand, energy savings, global warming potential, visual comfort, Indoor air quality, thermal comfort, aesthetics, renovation time, durability, Investment cost, LCC Cost, maintenance cost and operational energy cost. Based on the decision-making methodology, the best possible renovation scenario, which fits and matches the requirements of the investor, designer, and building itself, is selected.

Demonstration Site Update: Application of BIM-SPEED tools in Berlin, LichtenradeApr 21, 2021

Read More

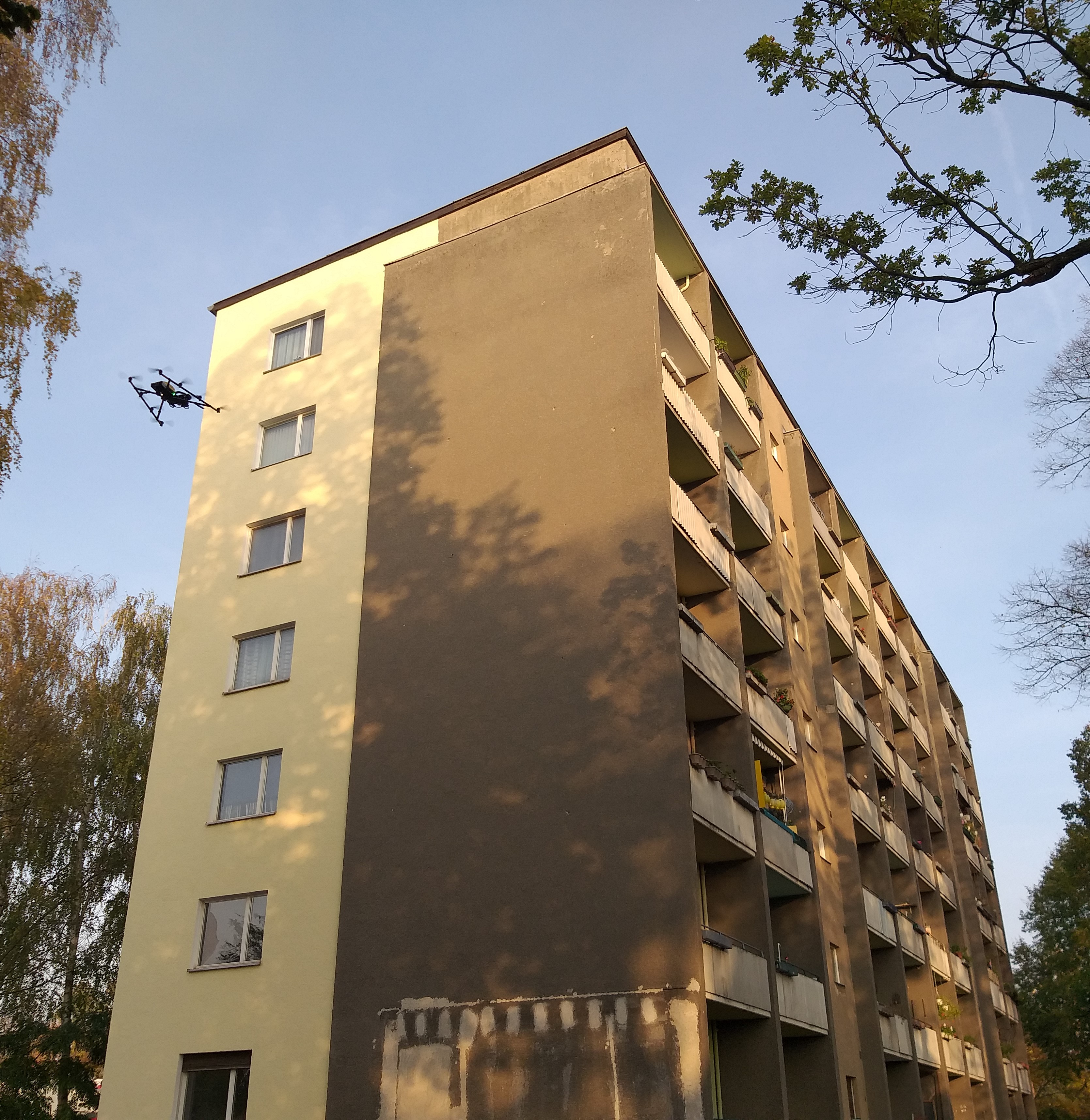

Demonstration Site Update: Application of BIM-SPEED tools in Berlin, Lichtenrade

Apr 21, 2021

​The BIM-SPEED project aims to offer solutions for smarter and more efficient methods of deep renovation for the residential building sector. However, we believe there is no better way to develop solutions than to test them in practice. Therefore, BIM-SPEED is testing its solutions in 13 real demonstration cases that cover all of Europe’s climatic geo-clusters and varying levels of BIM experience in different countries. Today we highlight the Lichtenrade demonstration site in Berlin, Germany.

The Lichtenrade site contains multistory, multifamily residential buildings. Two BIM-SPEED tools have been implemented and tested:

  • GIS Data Provider Service: for retrieving geospatial data in the surrounding of any specific demonstration site (at the moment, the service provides data only for Berlin city)
  • MEREEN Weather service: for retrieving recent ‘actual’ weather data for any specific demonstration site

The tools retrieve datasets from the surroundings and the environment and help improve the renovation workflow. These tools can be used for different use cases, including site planning, building energy modeling, acoustic comfort analysis, air quality comfort analysis, thermal comfort analysis, and lighting comfort analysis.



To implement the GIS data provider service on the Berlin demonstration site, BIM-SPEED selected a site planning use case. The GIS Data Provider retrieves geospatial data layers from the demonstration site by extracting the GPS location of the IFC file of the building. These data layers can be beneficial or are required for site planning. The retrieved data can be downloaded in shapefile format and visualized in GIS software such as ArcMap.



During the data collection phase at the Berlin Lichtenrade site, certain limitations of using drones for 3D and thermal scanning of the building came to light. The GIS data showed that the façade of the building is covered by trees. It also showed that an airport is close to the building. Both limit the possibility of drone flight. Additionally, the GIS data revealed that the building is surrounded by railway and roads. Therefore, the acoustic comfort of the building is considered in the renovation process. The GIS data layers also uncovered historical buildings close to the demonstration site, leading to proposals to check the regulation for the construction.



The MEREEN weather service retrieves ‘actual’ weather data from 2005 to 2020 for the Berlin demonstration site. The data is automatically extracted from the GPS location of the IFC file of the building. The single years weather data can be used in the calibration process of the building energy model. Additionally, the single years data and long-term ‘actual’ weather data can also be used for running building energy models in the building design process. The initial investigation of the Lichtenrade site, using long-term actual weather data, showed significant energy consumption reduction in the building compared to the old TMY datasets provided by EnergyPlus.



Both GIS Data Provider Service and MEREEN Weather service are a part of BIM-SPEED Deliverable 1.4, additional information and maps will be a part of the D1.4 report.

Newsletter 2020December 2020

Read More

Newsletter 2020

December 2020

​At the start of this project, BIM-Speed set out to develop the required BIM based technologies and supporting work processes for reducing renovation working time by at least 30%. Looking back upon two years of hard work, exciting discussions, and close collaboration, we are much closer to achieving this goal. In this edition of the annual newsletter, we highlight our 13 deliverables and other activities from 2020. Link to newsletter:

Newsletter 2020

Building Performance Assessment applied to BIM-SPEEDMar 09, 2020

Read More

Building Performance Assessment applied to BIM-SPEED

Mar 09, 2020

This month, we took a closer look at the framework for the Building Performance Assessment. In his LinkedIn article https://www.youtube.com/watch?v=WRImBBnwQMc, Associate Professor Marco Arnesano from Marche Polytechnic University (UNIVPM)  illustrates how the KPIs, Baseline, and Uses Cases will be used in the process of framework development, highlighting the importance of developing our own framework for the assessment.

In our BIMterview #4, Marco Aresano discuss what has been done in terms of the development of framework related to Building Performance Assessment and what will be put into practice in BIM-SPEED in the upcoming future. You can check the full interview here: https://www.youtube.com/watch?v=WRImBBnwQMc&t=4s


BIM-to-BEM processesFeb 12, 2020

Read More

BIM-to-BEM processes

Feb 12, 2020

This month, our partners STRESS s.c.a.r.l and RINA Consulting published an article that discusses the parameters of BIM-to-BEM process and the recommendations to solve the current bottlenecks of BIM adoption in the renovation market. Currently, BIM-to-BEM procedures involve time-consuming processes requiring additional input information and data corrections that should be entered manually. To overcome the current bottlenecks, the article investigates which strategies and key aspects can be optimized and standardized within the data exchange between BIM and BEM tools. https://www.linkedin.com/pulse/bim-to-bem-parameters-recommendations-solve-current-bim-alberto-zinno/

Furthermore, we had an opportunity to talk to our partners about the work package that is related to the BIM-to-BEM process. So far, we collected all the expertise between different parts of our consortium and worked together to identify the existing bottlenecks in BIM adoption and to develop possible solutions to improve the process. In our third BIMterview, Alberto Zinno and Fabrizio Tavaroli explains the progress of their work and what it entails. https://www.youtube.com/watch?v=Yj4fml-Htzs


Newsletter 2019December 2019

Read More

Newsletter 2019

December 2019

BIM-SPEED has completed its first year with great work from our partners. Substantial developments were made on the cloud-based platform, the scope of the use cases of BIM for renovations, and innovative solutions to solve bottlenecks of BIM-to-BEM use. BIM-SPEED demo sites are putting into practice the use of latest technology to improve energy efficiency of residential renovations, while also improving inhabitants comfort. The first issue of our interactive yearly newsletter has the project highlights and a video message from our project coordinator Timo Hartmann. Link to newsletter:

Newsletter_2019

Third consortium meeting 28-29 November 2019, Valladolid- Spain

Read More

Third consortium meeting

28-29 November 2019, Valladolid- Spain

Every 6 months, the 22 BIM-SPEED consortium partners meet to discuss the project progress and share their innovation developments with all group. Last month was time for the Spanish technology centre CARTIF to welcome the partners at their premises in the lovely Valladolid- Spain.

The 2 days were focused on collaboration and ideas sharing. Innovations pitches looked at the developments of Kroqi platform (CSTB), BIM to BEM bottlenecks (STRESS and RINA), an interesting software solution that CYPE is developing to build the bridge from BIM models into meaningful IFC files for BEM, the use of sensors for capturing users relevant data for energy efficiency, and much more.

Our technical coordinator DEMO, prepared a great surprise for the end of the first day, bringing a nice and fun award for the voted best innovation pitch - Marco Arnesano, from UNIPVM, went home with his personalized BIM-SPEED sweatshirt.

A crucial point of this meeting was the alignment of several innovative software solutions that BIM-SPEED is developing and the cloud-based platform Kroqi. A workgroup has been created including CSTB, CYPE, UNIPVM and STRESS to give the topic the priority required.

The demonstration cases are having fantastic progress, and BIM-SPEED is willing to push it further in collaboration with the community of practice, looking at use cases for BIM for renovation. FASADA, DEMO, HOCHTIEF ViCon and Arcadis are working hard on that.

In conclusion, it was a busy year for BIM-SPEED were we managed to set up the grounds for fantastic innovations to follow. We are looking forward to the next year!


Latest technology for as-built data captureDemo site Berlin, Germany

Read More

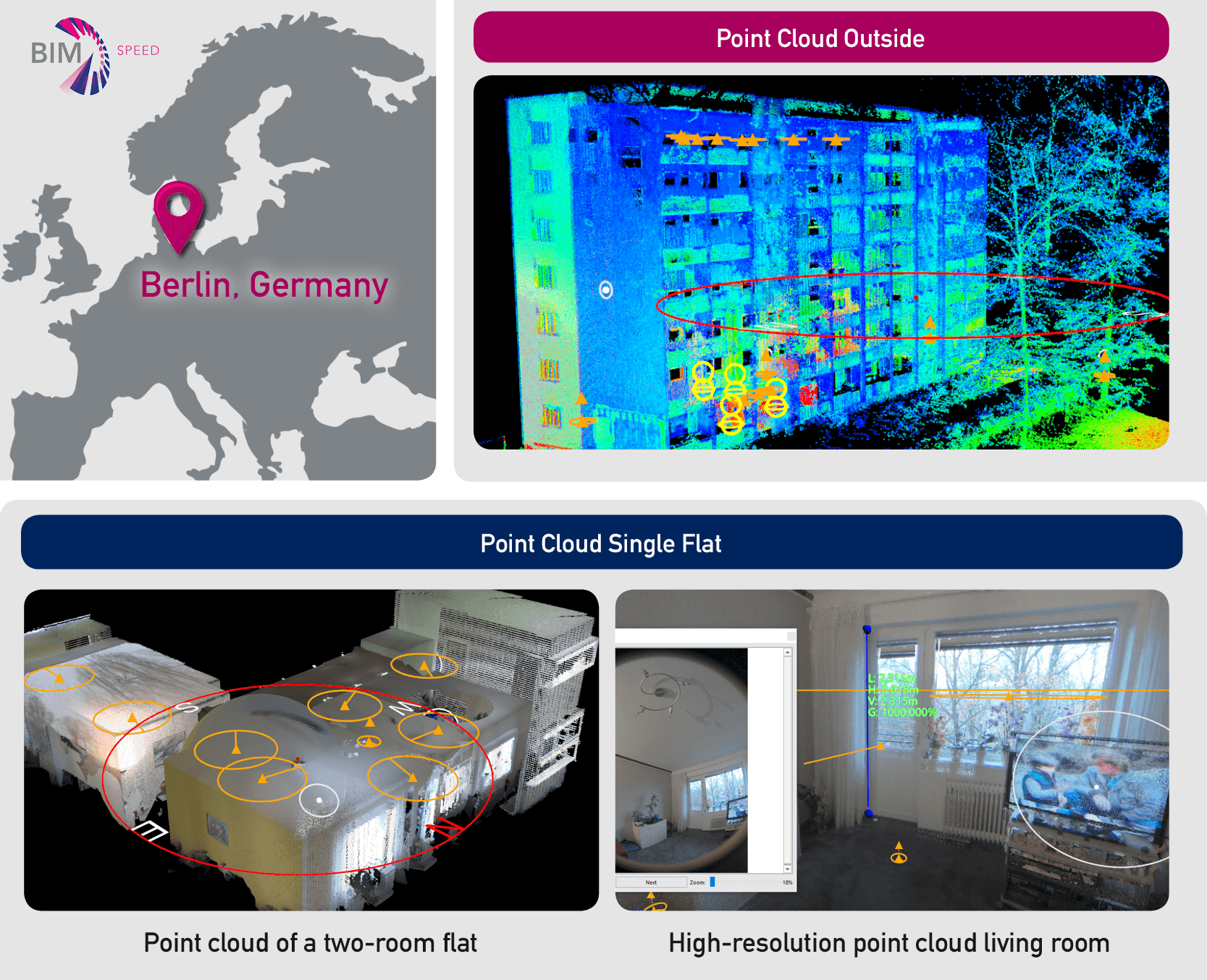

Latest technology for as-built data capture

Demo site Berlin, Germany

The demo site at Berlin, Germany, consist in a renovation of an apartment block with 56 dwellings, built in 1960. Due to the age of the building, as built information was all on paper outdated or incomplete drawings.

In renovation projects, this lack of information can produce errors in the design, cost overrun and delays in the project. For this reason, it is important to capture properly the existing conditions of the building at the initial stage of the project to support planning and execution activities from an early point.

To reduce this risk, we started the as-built data capture conducing a high-resolution 3D survey of all exterior surfaces of the building and the internal surfaces of the technical room and a sample occupied apartment using a robotic total station in conjunction with a laser scanner. This approach reduces the time that is necessary to overall verifications, as a complete layout and scan can be made in a single set-up. The cloud point data collected allow developing a detailed as-built BIM model of the building. This model will be compared with a BIM model of the demo case that was created previously through a conventional approach, which developed the 3D model from the drawings of the building and data collected manually.

To check the insulation of the building, we used the latest technology for thermal scanning: drones. A high-resolution camera and an infrared camera were attached to the drone which flew over and around the building, capturing multiple images in a systematic scheme. Drone-generated thermal maps are a game-changer for these kinds of inspections, this technology simplifies the scanning procedure leveraging predefined flight-plans, scanning the surfaces in a semi-automatic way.

The drone was used for the thermal scanning of the rooftop and some regions of the façades of the building, which allowed the identification of specific areas of the roof and façade possibly affected by moisture. The results obtained may encourage the replacement of the insulation membrane.

The latest technology used to survey the building gave the project team accurate information that will reduce risks during works on site and support better decision making about this renovation project, leading to higher energy efficiency.


Register to BIM- SPEED Industry day webinar Industry Day 24-October 2019, Webinar

Read More

Register to BIM- SPEED Industry day webinar

Industry Day 24-October 2019, Webinar

Are you interested to know more about the methods and tools that BIM-SPEED is developing to facilitate BIM adoption in residential renovation projects in order to increase the energy saving potential in your projects?

Join our first INDUSTRY DAY WEBINAR on the 24th October at 10am

Registration is free. Just log in and learn from BIM-SPEED experts. On the day we will talk about best practices of using BIM in residential renovation projects with the focus on high performance buildings, and provide guidance and advice. Get involved!  https://www.bim-speed.eu/en#

Agenda for the day:

  • Introduction to BIM-SPEED, by Prof. Dr. Timo Hartmann, Technische Universität Berlin
  • BIM strategy at ARCADIS, by Andrew Victory, Arcadis
  • Building performance bench-marking and energy efficiency assessment by Prof. Marco Arnesano, Università Politecnica Delle Marche
  • Overview of BIM-SPEED pilot projects, by Agnieszka Łukaszewska, FASADA
  • Presentation of Spanish demonstration case, by Oskar Bell Fernández, Vivienda y Suelo de Euskadi, S.A.


Great progress at demonstration sitesSpain and Bulgaria

Read More

Demo site Spain and Bulgaria

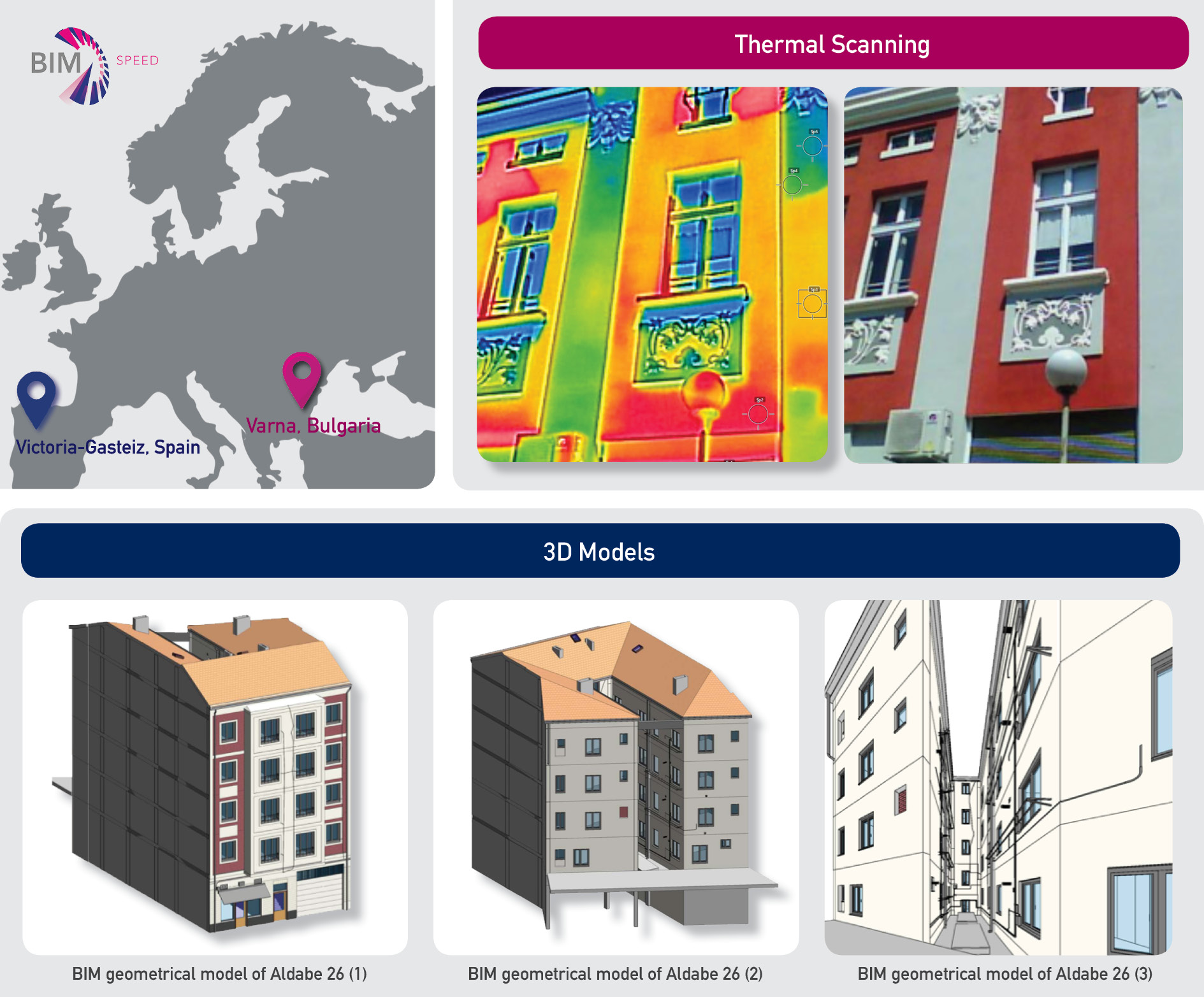

Great progress at demonstration sites

Spain and Bulgaria

Since the launch of our project in November 2018, our consortium partners are endeavouring to realise the energy-efficient housing renovations in the EU. Thanks to them, BIM-SPEED is running on wheels.

Hot summer months were the perfect time for completing the thermal scanning. With the help of our partner Architectural Spies, successful thermal surveys were carried out in both Bulgarian demo site (Varna) and Spanish demo site (Vitoria-Gasteiz). In Varna, a total of 256 scans (204 interiors and 52 exteriors) were made. These scans are to be integrated with the additional building data to understand the energy behaviour of the demo site. For Vitoria-Gasteiz, another scanning is planned this winter. A final thermal scanning after the actual renovation will determine the real quality of the insulation of the building.

Furthermore,  we have completed a detailed survey of every apartment regarding the ventilation, carpentry, and condensations in Vitoria-Gasteiz demo site. In combination with 3D scanning data and the 3D model developed by our partner LKS, the survey will provide relevant building details to produce a BEM (Building Energy Model). In addition, the 3D model images have also been facilitating smooth communication between the community and our project. "An image is worth more than any word."


BIMterview Prof. Timo HartmannBIM-SPEED Project Coordinator

Read More

BIMterview Prof. Timo Hartmann

BIM-SPEED Project Coordinator

In our first #BIMterview, BIM-SPEED project coordinator Prof. Dr. Timo Hartmann talks about his motivations in conceiving this project, the innovative solutions that BIM-SPEED will provide to simulate different renovation scenarios, and how demonstration cases can help speed up the adoption of BIM in renovations.

He talks about the importance of simulating not only the energy consumption, but also comfort and other variances of renovation solutions. And how the use of prediction performance gap can provide a better decision making about the possible renovation options.

To read the full interview, click on this link:  BIMterview Prof Timo Hartmann.pdf



BIM-SPEED second GA meetingJul 01, 2019

Read More

BIM-SPEED second GA meeting

Jul 01, 2019

​In May 2019, our partner Scientific and Technical Center for Building (CSTB) hosted the second consortium GA meeting in Nice, France. Our second meeting was meaningful time to reflect on the core value of BIM-SPEED, and to look into the new development in our project and platform. We focused on the use and demonstration cases to discuss the solution that BIM-SPEED will bring to the housing renovation markets. So far, all of the deliverables were successfully delivered. During the meeting, our partners shared creative ideas and valuable opinions to ensure all the objectives are met for the upcoming deliverables.

The BIM-SPEED solution is based on the KROQI Cloud platform which was a centre point of the discussions. We are testing the platform integration architecture with our demonstration cases. So far, the platform is proving to offer great features for BIM adoption in housing renovation market.

Furthermore, there were innovation pitches from each work package leader. WP leaders presented the main innovative outcomes of each work package and how these outcomes can support or enhance the processes of a renovation project. The integration of GIS into renovation project, the development of a BIM passport, 3D Scan to BIM, comfort eye tool and the AR/VR technology were discussed as focal points and all partners engaged in the discussion with passion and enthusiasm. It was a constructive meeting and we believe that BIM-SPEED is on the right track for the energy-efficient housing renovation in the EU.


Spanish BIM-SPEED DemonstratorMar 11, 2019

Read More

Spanish BIM-SPEED Demonstrator

Mar 11, 2019

The BIM SPEED project has selected two buildings in Victoria-Gasteiz, Northern Spain, as demonstration sites. These were both built in 1958. First demonstration site is a four story residential building with eight flats, a garage and a bar in the ground floor in a U Shape. The external walls are made from double layer of brick with an air cavity in between. The second demonstration site is a 5 story residential building with 12 flats, with a storage room and a bar in the ground floor in an H Shape.  Most of the main external walls are made from double layer of brick an air cavity. Others just are composed of a simple layer of brick without any cavity. Both buildings are not insulated and have poor energy performance with condensation and humidity problems.


The buildings are also Lighthouse demonstrators in a SmartEnCity project funded under the European Union’s Horizon 2020 research and innovation programme (grant agreement No 691883). The renovation activities within SmartEnCity project will contain insulation of the building envelope with focus on façades and roof and connecting the dwellings to a new District Heating system based on biomass energy. During the BIM-SPEED project, new tools and solutions supporting as-built data acquisition, designing, energy simulation and construction works will be implemented.

BIM-SPEED has started!29-30 November 2018, Brussels, Belgium

Read More

BIM-SPEED has started!

29-30 November 2018, Brussels, Belgium

On the 29th and 30th of November 2018 the BIM-SPEED kick-off meeting was held in Brussels, Belgium. During the 2 days all partners got to know eachother, and we also met our project officer for the first time. After meet&greet sessions with coffee and snacks and a short look back on how the project was conceived, we got to dive into the subject matter.

During several brainstorm sessions we exchanged ideas and came up with concepts for challenges within the project. It was great to see the level of enthusiasm and all the questions exchanged. A very fruitful meeting, and we are looking forward to a successful 4-year project!
